Product Details:
|
Color: | The Polar Grey,orange | Power: | 18KW (380V AC 3φ 50Hz) |
---|---|---|---|
Weight: | 1600kg | Dimension(l*w*h): | 6600*2100*1600 |
Type: | Gluing Machine | After Sales Service: | Good Service |
After-sales Service: | Video Technical Support,Online Support | Packaging Material: | Wood |
Highlight: | 1300mm×1050mm Paper Box Gluing Machine,Paper Box Gluing Machine 18KW |

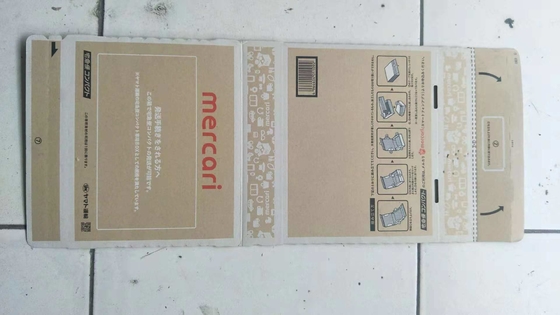

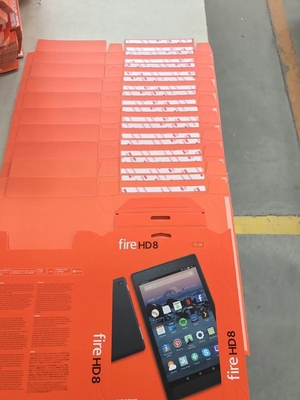

Full automatic stick double-sided adhesive machine is designed and researched by Deshisen CO., Ltd for single sheet water-based printing of corrugated container, Offset printing color-mounted corrugated cardboard boxes, cardboard color boxes, etc., affixed with double-sided tape and easy-to-tear tape simultaneously.
Any type of coding system can be set up on the platform for variable information printing, and a labeling head can be optionally installed. Local labeling function can be installed as well.
This series adopts a more optimized modular design, users can have more personalized choices, and achieve a multi-purpose design concept.
This equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.
Supplement:
This machine can be added with a shell, which is not only beautiful, but also has a protective effect.As shown below .
color | The polar grey,orange | Working width | 1310MM |
material | ≥300g/m²cartons | Air compressor | min. 6 bar |
Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
Maximum paper size | 1300mm×1050mm | weight | 1600KG |
The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
