Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Weight: | 1600kg | Maximum Paper Size: | 1300mm×1050mm |
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD | The Highest Speed: | 60m/min-100m/min |
| Paper Feeding: | Automatic Feeding | Key Selling Points: | Long Service Life |
| High Light: | 1300mm×1050mm Paper Box Folder Gluer,Paper Box Folder Gluer Machine,Box Folder Gluer Machine Automatic Feeding |
||

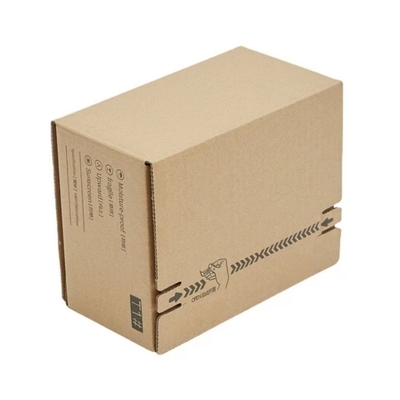

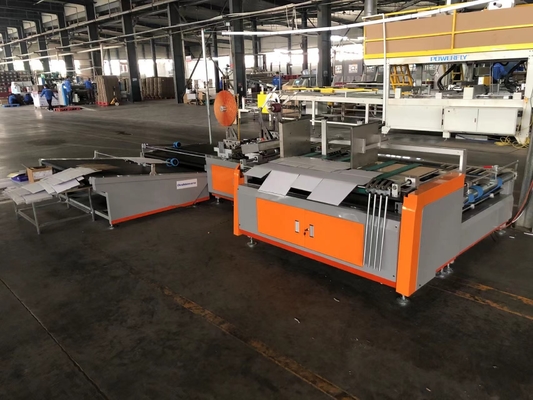

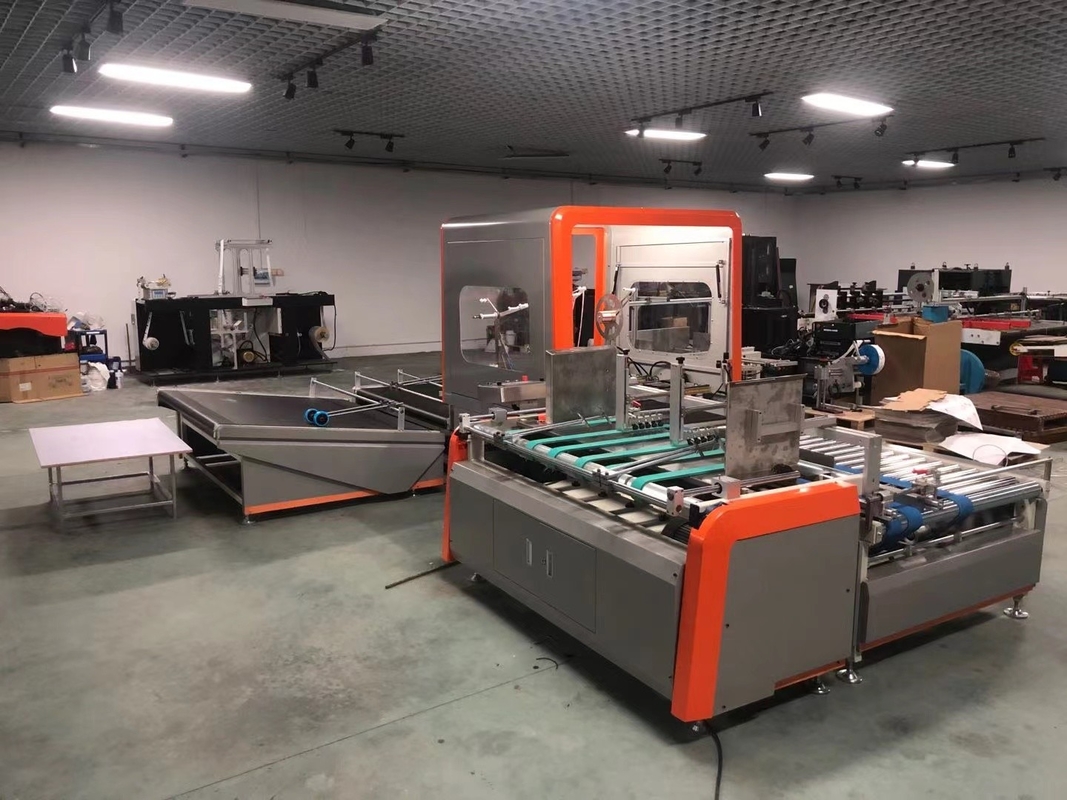

Zipper Shipping Boxes / 18 KW / Maximum paper size 1300mm×1050mm
Feature:
1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5.Grinders are provided in both sides of machine, to make gluing more stable and firm.

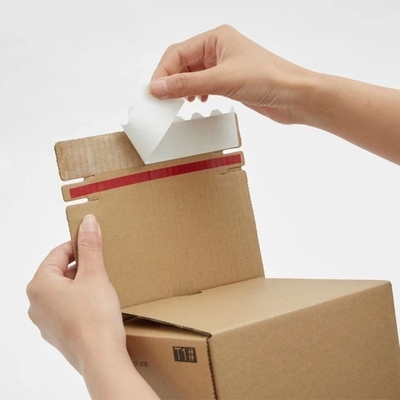

E-commerce special zipper carton third generation glue process
Compared with the first generation of double-sided glue, the second generation of foam glue two adhesive materials, the third generation of technology advantages are very obvious.
1, 10000 meters long endurance, production efficiency increased by 35%.
2, hot melt adhesive material cost is 40% of double-sided adhesive.
3, environmental protection degradation (double-sided adhesive can not be completely degraded).
Product parameters:
| zipper shipping boxes machine | |||
| Warranty | one year | ||
| weight | 1600KG | ||
| Minimum paper size | 250mm×250mm | ||
| Maximum paper size | 1300mm×1050mm | ||
| speed | 60m/min-100m/min | ||
| dimensions | 6600*2100*1600 | ||
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Safety performance:
A: Electrical safety meets the national standard (CE certification).
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2.
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle.
