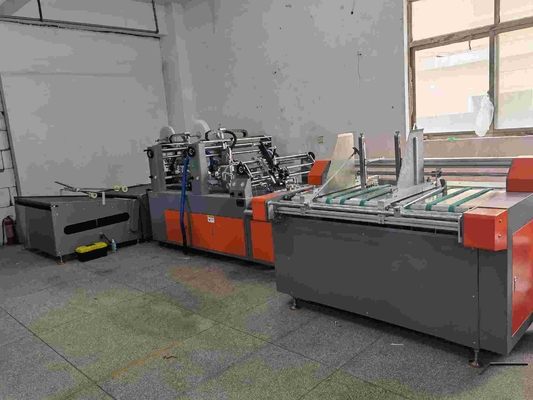

Product Details:
|
| Warranty: | One Year | Weight: | 1600kg |
|---|---|---|---|
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, Corrugating Cardboard | The Highest Speed: | 60m/min |
| Type: | Gluing Machine | After-sales Service Provided: | Video Technical Support, Online Support |
| Driven Type: | Electric | Certification: | CE |
| Highlight: | Packaging Corrugated Box Folder Gluer Machine,Corrugated Box Folder Gluer Machine 70m/Min |
||
Feature:
1. The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2. The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3. An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
4. Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5. Grinders are provided in both sides of machine, to make gluing more stable and firm.
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Product details:
1. Automatic paper feeding device:The new concept design mainly aims at the special tensioning method for fast change of belt running deviation, which effectively improves the change time.
2. Pull gauge rectifying deviation part:Single positioning unit, carton out of the paper with one side as the benchmark. To ensure accurate gluing/accuracy of products, click the drive alone, the machine is more stable.
3. Centrifugal paper scraping section:New design concept, through centrifugal paper scraping, cutting; And through the suction wheel transfer to the product. Effectively reduce the cost of double-sided glue, glue using hot melt glue can achieve the requirements of complete environmental protection.
4.Electric control system :The squeegee system adopts a bus controller and is equipped with a remote module, which effectively realizes the requirements of the Internet of things. Touch screen setting glue parameters, easy to understand, perfect control system effectively ensure the accuracy of the product glue.
Folder gluer machine:
1. It is suitable for all carton packaging that needs to be glued and sealed, such as sealing of biscuits, food, medicine, tissue boxes, etc.
2. Filling by manual.Automatic delivery ,gluing and sealing. The size and specification can be adjusted.
3. The amount of glue used by the machine is about 1/3 of that of manual sealing box glue, and the amount of glue used is very small.
4. The whole machine is made of stainless steel and aluminum alloy, meeting food grade standards.
5. The bottom is equipped with casters for easy movement;Can increase the(pay)equipped with date core machine.
