Product Details:
|
| Warranty: | One Year | Weight: | 1600kg |
|---|---|---|---|
| Maximum Paper Size: | 1300mm×1050mm | Usage: | Packaging, Corrugated Box, Making Carton, Chemical, Corrugating Cardboard |
| The Highest Speed: | 60m/min-100m/min | Model: | HM1300 |
| Color: | The Polar Grey,orange | After-sales Service Provided: | Video Technical Support,Online Support |
| Certification: | CE | ||
| Highlight: | Polar Grey Corrugated Box Gluing Machine,Corrugated Box Gluing Machine 90m/Min,Corrugated Cardboard Gluing Machine |
||
Zipper Shipping Boxes Zipper Shipping Boxes Machine / 1300mm×1050mm / The Polar Grey,Orange
Advantages:

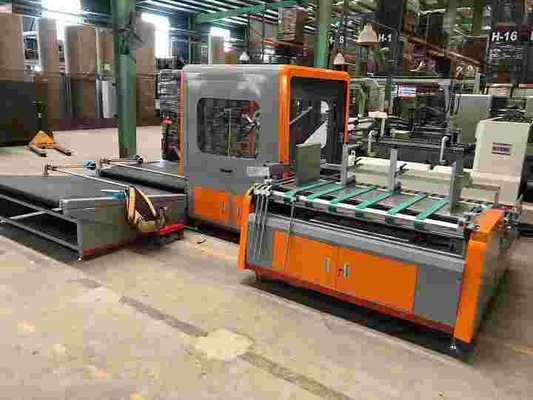

This machine can be added with a shell, which is not only beautiful, but also has a protective effect.As shown below .

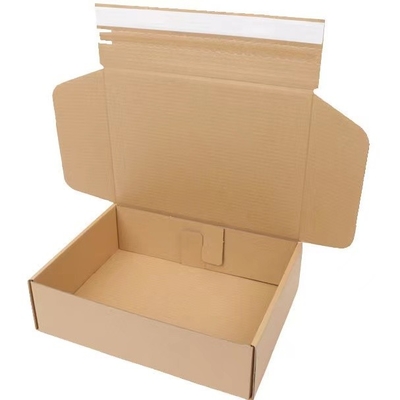

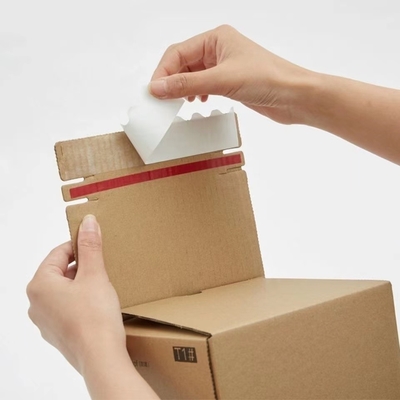

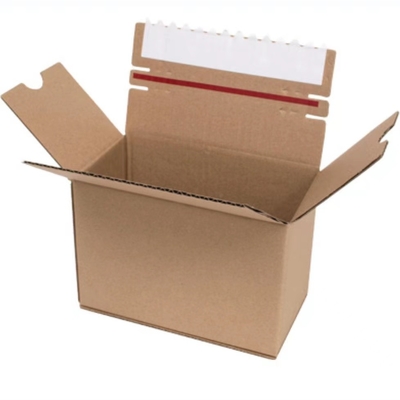

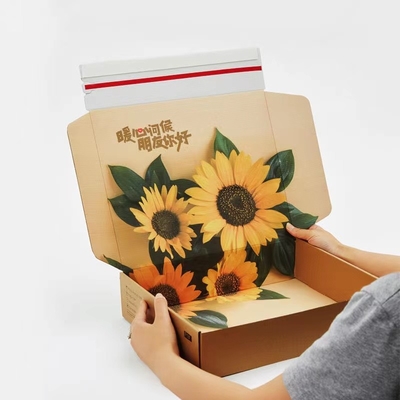

E-commerce special zipper carton third generation glue process
Compared with the first generation of double-sided glue, the second generation of foam glue two adhesive materials, the third generation of technology advantages are very obvious.
1, 10000 meters long endurance, production efficiency increased by 35%.
2, hot melt adhesive material cost is 40% of double-sided adhesive.
3, environmental protection degradation (double-sided adhesive can not be completely degraded).
| product description | |||
|

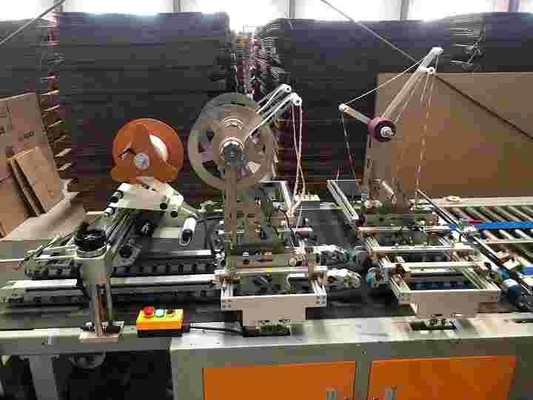

Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.
|
|||
| Model | HM1300 | ||
| material | ≥300g/m²cartons | ||
| Minimum paper size | 250mm×250mm | ||
| Maximum paper size | 1300mm×1050mm | ||
| The highest speed | 60m/min | ||
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Feature:
1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5.Grinders are provided in both sides of machine, to make gluing more stable and firm.
Safety performance:
A: Electrical safety meets the national standard (CE certification);
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2.
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle;
