Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Maximum Paper Size: | 1300mm×1050mm | Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD |
| The Highest Speed: | 60m/min-100m/min | Weight: | 1600kg |
| Model: | HM1300 | Place Of Origin: | SHENZHEN CHINA |
| Working Width: | 1310mm | Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, Printing |
| Highlight: | 1310mm Corrugated Folder Gluer Machine,90m/Min F Corrugated Folder Gluer Machine,90m/Min F Corrugated Folder Gluer |
||

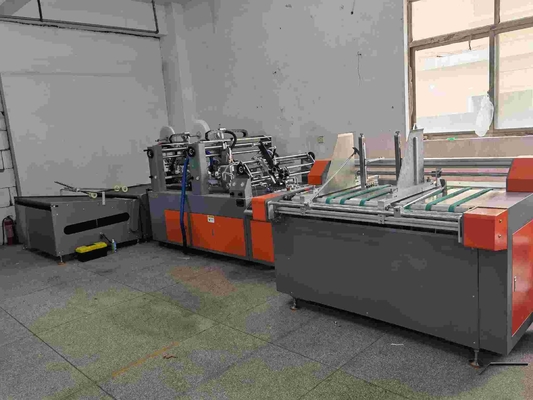

Corrugated Box Gluing Machine Zipper shipping boxes
product description:
The fully automatic double-sided gluing machine is used by Deshisen Co., Ltd. for sheet-fed water-based printing, offset printing, color-mounted corrugated boxes, cardboard color boxes, etc.
Any type of inkjet coding system can be set on the platform for variable information printing, and a labeling head is optional. It is also possible to install the local label function.
This series adopts a more optimized modular design, users can have more personalized choices, and realize the design concept of one machine with multiple functions.
The equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.
The third-generation glue coating process for e-commerce special zipper cartons
Compared with the first-generation double-sided adhesive, the second-generation foam adhesive is two kinds of bonding materials, and the technical advantages of the third-generation are very obvious.
110,000 meters long battery life, 35% increase in production efficiency
2. The cost of hot melt adhesive material is 40% of double-sided adhesive
3. Environmental degradation (double-sided tape cannot be completely degraded)
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Safety performance:
A: Electrical safety meets the national standard (CE certification);
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle;
