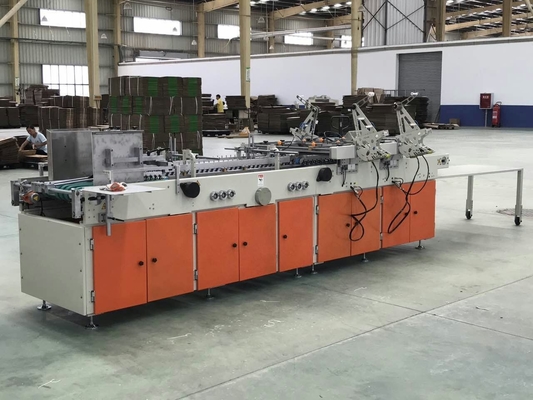

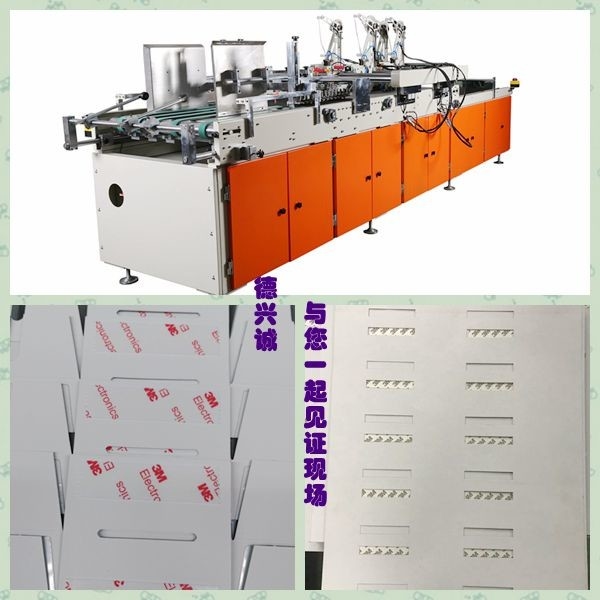

Carton Box Gluing Machine
1. Description of machine:
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.
2. Specification:
Model DXC1000-4 is the hot sale of the company. The users praise its stability, versatility and flexibility.It can paste many kinds of boxes. For small ones,it can make 40,000 to 50,000 pcs per hour. It' sideal equipment in printing industry.
| Model |
Z1000-4 |
Working width |
1310MM |
| material |
≥300g/m²cartons |
Air compressor |
min. 6 bar |
| Minimum paper size |
250mm×250mm |
total power |
18 KW (380V AC 3φ 50Hz) |
| Maximum paper size |
1300mm×1050mm |
weight |
1600KG |
| The highest speed |
60m/min-100m/min |
Machine dimensions |
6600*2100*1600 |
4 . our services:
A: The initial installation training includes written process training and on-site training until you can operate the machine independently and safely. The general training is 3-5 days before you can proficiently operate the machine independently. After the training, you can contact our after-sales staff by telephone or video at any time.
B: The quality warranty period shall be within 12 months from the date of completion of installation and debugging. During the warranty period, Party B shall repair and replace relevant parts free of charge if there are any quality problems of the product. If the subject matter is damaged and parts need to be replaced due to party A's factory reasons or improper operation, Party B shall only charge the cost of the replacement parts during maintenance and provide lifelong service.
C: After receiving the warranty notice, if the problem cannot be solved by phone or wechat video, the maintenance personnel must arrive at the site for service within 24 hours.
D: If our staff comes to your company's urban area (new machines are installed within 2 months in the Yangtze River Delta area), we will visit your company's workshop irregularly to provide services, record every problem reported by users, continuously improve products, and create maximum value for users.
5. Safety performance:
A: Electrical safety meets the national standard (CE certification);
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle;
