Product Details:
|
| Weight: | 1600kg | Dimension: | 6600*2100*1600 |
|---|---|---|---|
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD | Speed: | 60m/min-100m/min |
| Maximum Paper Size: | 1300mm×1050mm | Minimum Paper Size: | 250mm×250mm |
| Material: | ≥300g/m²cartons | Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, Printing |
| High Light: | Corrugated Carton Box Gluer 1310mm,80m/Min Corrugated Carton Box Gluer,1310mm Auto Folder Gluer Machine |
||

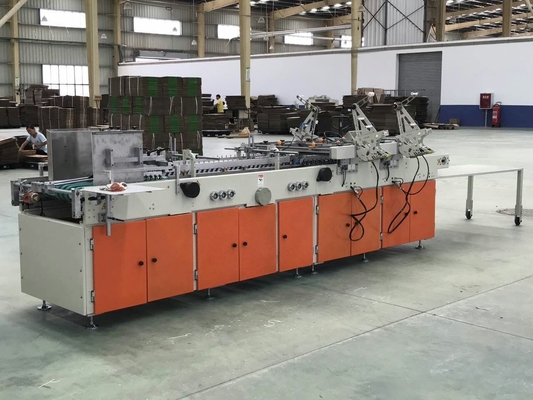

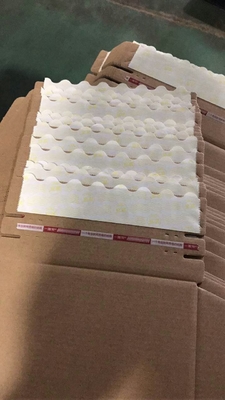

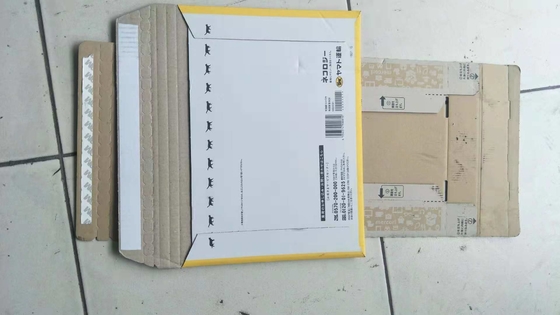

Full automatic stick double-sided adhesive machine is designed and researched by Deshisen CO., Ltd for single sheet water-based printing of corrugated container, Offset printing color-mounted corrugated cardboard boxes, cardboard color boxes, etc., affixed with double-sided tape and easy-to-tear tape simultaneously.
Any type of coding system can be set up on the platform for variable information printing, and a labeling head can be optionally installed. Local labeling function can be installed as well.
This series adopts a more optimized modular design, users can have more personalized choices, and achieve a multi-purpose design concept.
This equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.
Instruction:

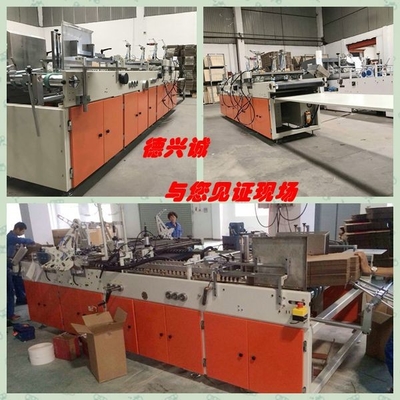

Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.
| Model | ZH1000-4A | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min | Machine dimensions | 6600*2100*1600 |
Product details:
1. Automatic paper feeding device:The new concept design mainly aims at the special tensioning method for fast change of belt running deviation, which effectively improves the change time.
2.Pull gauge rectifying deviation part:Single positioning unit, carton out of the paper with one side as the benchmark. To ensure accurate gluing/accuracy of products, click the drive alone, the machine is more stable.
3.Centrifugal paper scraping section:New design concept, through centrifugal paper scraping, cutting; And through the suction wheel transfer to the product. Effectively reduce the cost of double-sided glue, glue using hot melt glue can achieve the requirements of complete environmental protection.
4.Electric control system:The squeegee system adopts a bus controller and is equipped with a remote module, which effectively realizes the requirements of the Internet of things. Touch screen setting glue parameters, easy to understand, perfect control system effectively ensure the accuracy of the product glue.
5.Transport department:Belt adopts soft moderate Swiss imported belt, won't crush the finished product. Neat conveying, laminated paper receiving mechanism to ensure perfect quality; The function of points can be selected according to product needs.
