Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Weight: | 1600kg | Maximum Paper Size: | 1300mm×1050mm |
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD | The Highest Speed: | 60m/min-100m/min |
| Color: | The Polar Grey,orange | Type: | Gluing Machine |
| Highlight: | Orange Corrugated Box Gluing Machine,Corrugated Box Gluing Machine Small CBM,Corrugated Box Folding Machine Easy Operation |
||

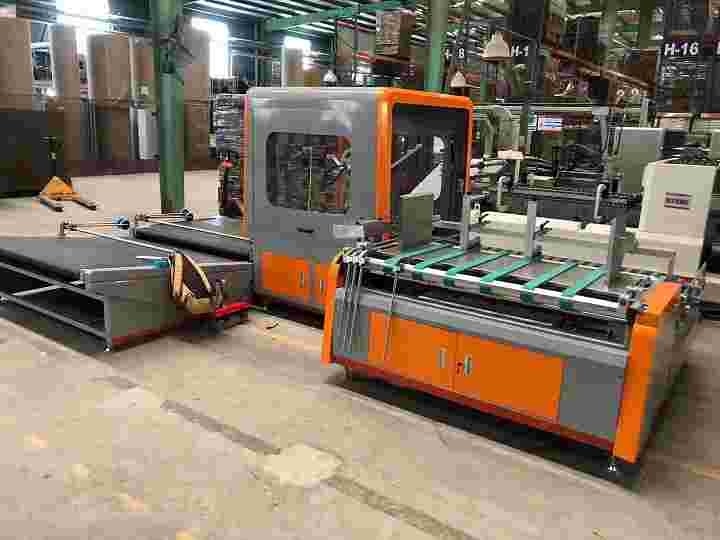

corrugated box folding machine / The polar grey,orange/1600kg
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Safety performance:
A: Electrical safety meets the national standard (CE certification);
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle;
