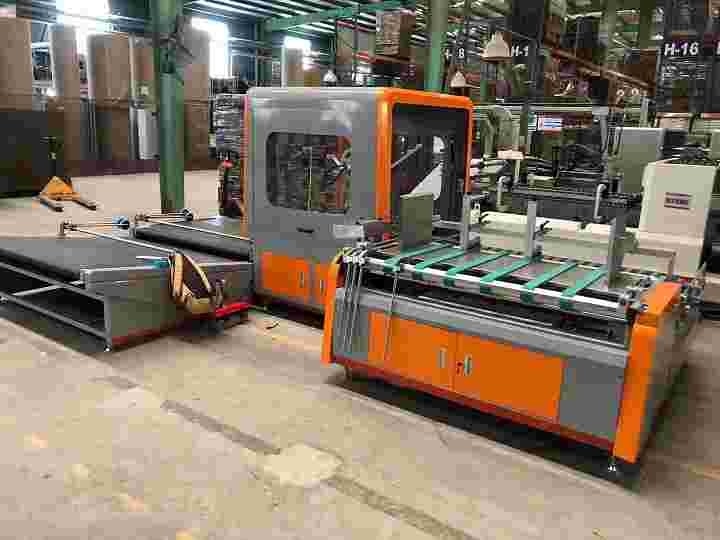

Automatic Folding Carton Gluing Machine 18KW 50Hz Wood Packaging

Zipper Shipping Boxes Machince / Packaging, Corrugated Box

product description:

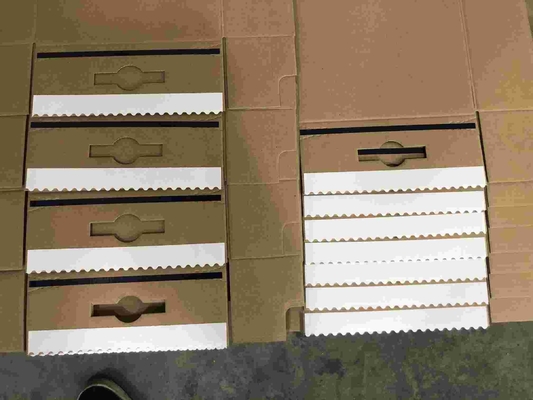

Full automatic stick double-sided adhesive machine is designed and researched by Deshisen CO., Ltd for single sheet water-based printing of corrugated container, Offset printing color-mounted corrugated cardboard boxes, cardboard color boxes, etc., affixed with double-sided tape and easy-to-tear tape simultaneously.

Any type of coding system can be set up on the platform for variable information printing, and a labeling head can be optionally installed. Local labeling function can be installed as well.

This series adopts a more optimized modular design, users can have more personalized choices, and achieve a multi-purpose design concept.

This equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.

Feature:

1. The machine is running steady with strengthened driving system, and it is also easy for maintenance.

2. The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.

3. An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.

4. Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.

5. Grinders are provided in both sides of machine, to make gluing more stable and firm.

6. Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.

7. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote diagnosis helps to maintenance (remote controller system included), and a photo electric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.

Product parameters:

List of vulnerable parts:

model	picture	quantity	unit	Notes
Tooth blade (15 teeth)		4	slice
Press wheel + wrap adhesive		4	piece
The flat cutter		2	piece
The belt		1	piece

After-sales service:

1. The initial installation training includes written process training and on-site training until you can operate the machine independently and safely. The general training is 3-5 days before you can proficiently operate the machine independently. After the training, you can contact our after-sales staff by telephone or video at any time.

2. The quality warranty period shall be within 12 months from the date of completion of installation and debugging. During the warranty period, Party B shall repair and replace relevant parts free of charge if there are any quality problems of the product. If the subject matter is damaged and parts need to be replaced due to party A's factory reasons or improper operation, Party B shall only charge the cost of the replacement parts during maintenance and provide lifelong service.

3.  After receiving the warranty notice, if the problem cannot be solved by phone or wechat video, the maintenance personnel must arrive at the site for service within 24 hours.

4. If our staff comes to your company's urban area (new machines are installed within 2 months in the Yangtze River Delta area), we will visit your company's workshop irregularly to provide services, record every problem reported by users, continuously improve products, and create maximum value for users.
