300g/M2 Corrugated Folder Gluer Machine 80m/Min HM1300 6 Bar Air Compressor

Corrugated Box Folding Machine / Zipper Shipping Boxes Machine/ ≥300g/M² / 1300mm×1050mm

product description:

Full automatic stick double-sided adhesive machine is designed and researched by Deshisen CO., Ltd for single sheet water-based printing of corrugated container, Offset printing color-mounted corrugated cardboard boxes, cardboard color boxes, etc., affixed with double-sided tape and easy-to-tear tape simultaneously.

Any type of coding system can be set up on the platform for variable information printing, and a labeling head can be optionally installed. Local labeling function can be installed as well.

This series adopts a more optimized modular design, users can have more personalized choices, and achieve a multi-purpose design concept.

This equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.

Advantages:

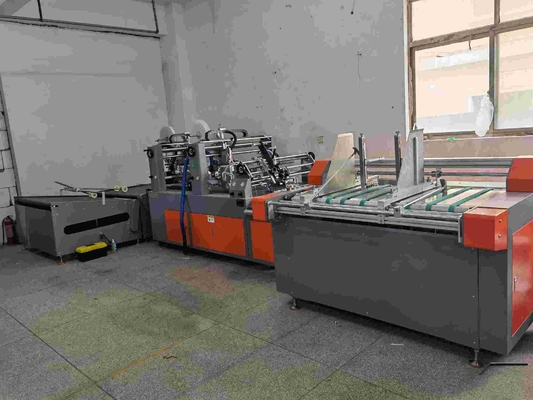

This machine can be added with a shell, which is not only beautiful, but also has a protective effect. As shown below .

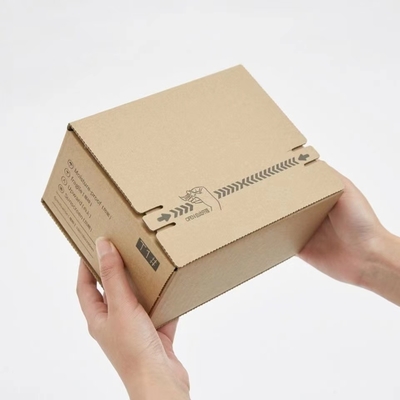

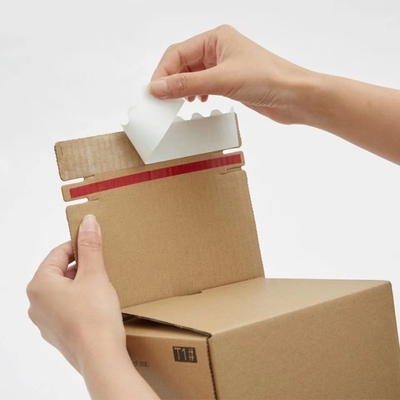

E-commerce special zipper carton third generation glue process

Compared with the first generation of double-sided glue, the second generation of foam glue two adhesive materials, the third generation of technology advantages are very obvious.

1,10000 meters long endurance, production efficiency increased by 35%.

2, hot melt adhesive material cost is 40% of double-sided adhesive.

3, environmental protection degradation (double-sided adhesive can not be completely degraded).

Product details:

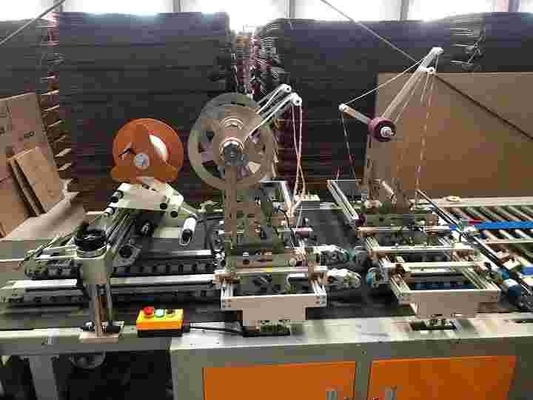

1. Automatic paper feeding device:The new concept design mainly aims at the special tensioning method for fast change of belt running deviation, which effectively improves the change time.

2. Pull gauge rectifying deviation part:Single positioning unit, carton out of the paper with one side as the benchmark. To ensure accurate gluing/accuracy of products, click the drive alone, the machine is more stable.

3. Centrifugal paper scraping section:New design concept, through centrifugal paper scraping, cutting; And through the suction wheel transfer to the product. Effectively reduce the cost of double-sided glue, glue using hot melt glue can achieve the requirements of complete environmental protection.

4.Electric control system :The squeegee system adopts a bus controller and is equipped with a remote module, which effectively realizes the requirements of the Internet of things. Touch screen setting glue parameters, easy to understand, perfect control system effectively ensure the accuracy of the product glue.

Product parameters:

List of vulnerable parts:

model	picture	quantity	unit	Notes
Tooth blade (15 teeth)		4	slice
Press wheel + wrap adhesive		4	piece
The flat cutter		2	piece
The belt		1	piece
