Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Weight: | 1600kg | Maximum Paper Size: | 1300mm×1050mm |
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD | The Highest Speed: | 60m/min-100m/min |
| Model: | HM1300 | Material: | ≥300g/m²cartons |
| Certification: | CE | Key Selling Points: | Long Service Life |
| Highlight: | CE Corrugated Box Gluing Machine,Corrugated Box Gluing Machine 1300mm,Corrugated Box Folding Machine 300g/m2 |
||
Amazon Boxes Zipper Shipping Boxes Machine
| product description | |||
|
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.
|
|||
| Model | HM1300 | ||
| material | ≥300g/m²cartons | ||
| Minimum paper size | 250mm×250mm | ||
| Maximum paper size | 1300mm×1050mm | ||
| The highest speed | 60m/min-100m/min | ||
Advantages:

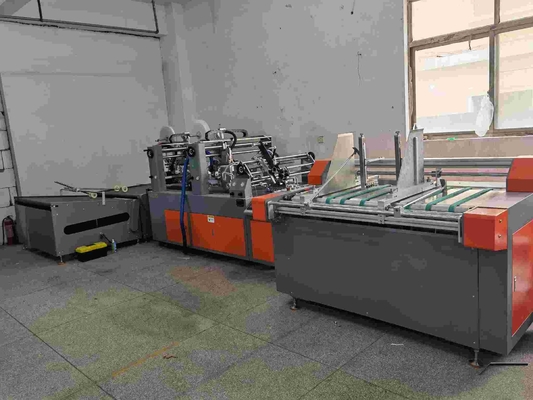

This machine can be added with a shell, which is not only beautiful, but also has a protective effect.As shown below .

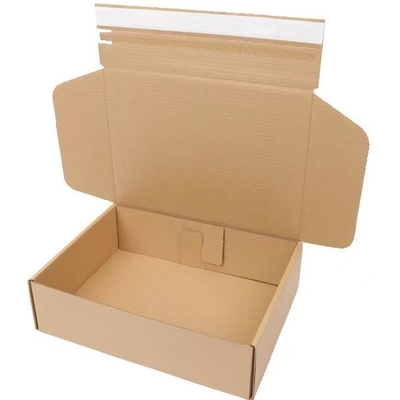

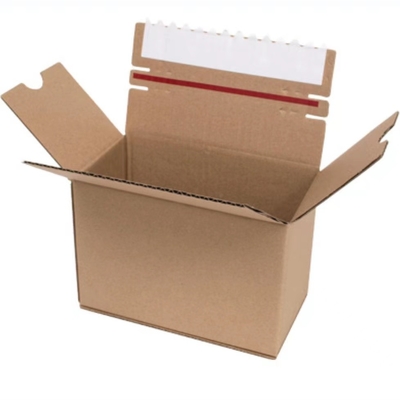

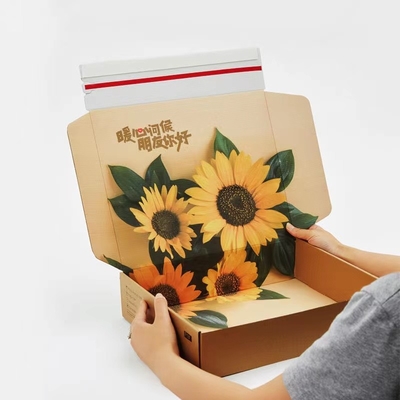

E-commerce special zipper carton third generation glue process
Compared with the first generation of double-sided glue, the second generation of foam glue two adhesive materials, the third generation of technology advantages are very obvious.
1, 10000 meters long endurance, production efficiency increased by 35%.
2, hot melt adhesive material cost is 40% of double-sided adhesive.
3, environmental protection degradation (double-sided adhesive can not be completely degraded).
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |

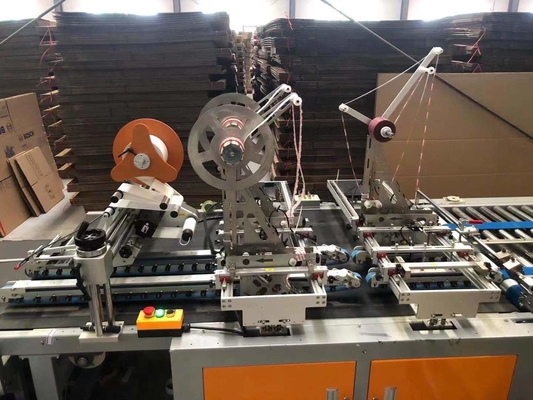

Box Folder gluer machine:
1. It is suitable for all carton packaging that needs to be glued and sealed, such as sealing of biscuits, food, medicine, tissue boxes, etc.
2. Filling by manual.Automatic delivery ,gluing and sealing. The size and specification can be adjusted.
3. The amount of glue used by the machine is about 1/3 of that of manual sealing box glue, and the amount of glue used is very small.
4. The whole machine is made of stainless steel and aluminum alloy, meeting food grade standards.
5. The bottom is equipped with casters for easy movement;Can increase the(pay)equipped with date core machine.
Safety performance:
A: Electrical safety meets the national standard (CE certification);
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2.
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle;
