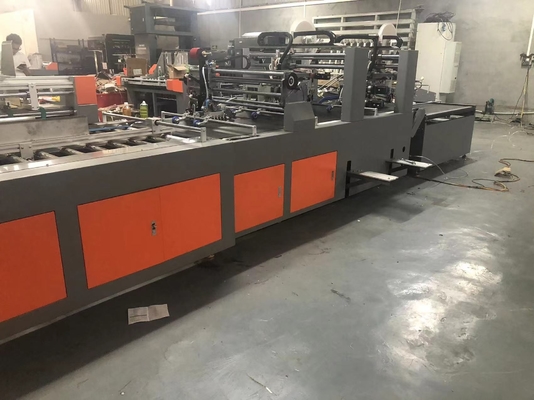

Orange Automatic Box Gluing Machine 1600kg for Corrugated Box CE

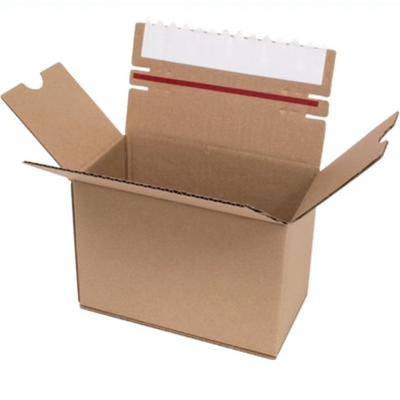

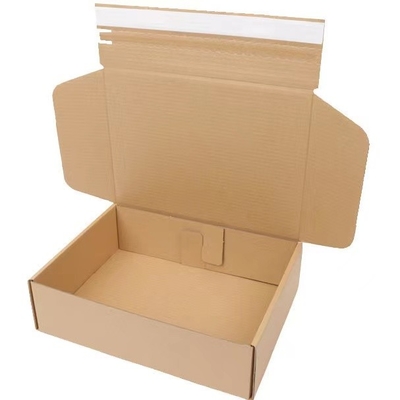

Zipper Shipping Boxes Zipper Shipping Boxes Machine / Polar Grey Orange / 1600kg

Instruction:

Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.

Fully Automatic Box Case Carton Erector

Carton erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot melt glue system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.

Product parameters:

List of vulnerable parts:

model	picture	quantity	unit	Notes
Tooth blade (15 teeth)		4	slice
Press wheel + wrap adhesive		4	piece
The flat cutter		2	piece
The belt		1	piece

Feature:

1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.

2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.

3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.

4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.

5.Grinders are provided in both sides of machine, to make gluing more stable and firm.

6.Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.

7.PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote diagnosis helps to maintenance (remote controller system included), and a photo electric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.
