Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life

Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life
Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life

Large Image :  Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life

Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: Deshisen
Certification: CE
Model Number: HM1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden packaging
Supply Ability: The spot goods

Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life

Description
Power: 18 KW (380V AC 3φ 50Hz) Warranty: One Year
Weight: 1600kg Maximum Paper Size: 1300mm×1050mm
Usage: Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD The Highest Speed: 60m/min-100m/min
Color: Polar Grey , Orange Material: ≥300g/m²cartons
Key Selling Points: Long Service Life After-sales Service Provided: Video Technical Support,Online Support
Highlight:

Small Footprint Folding Carton Gluing Machine

,

Folding Carton Gluing Machine Easy Operate

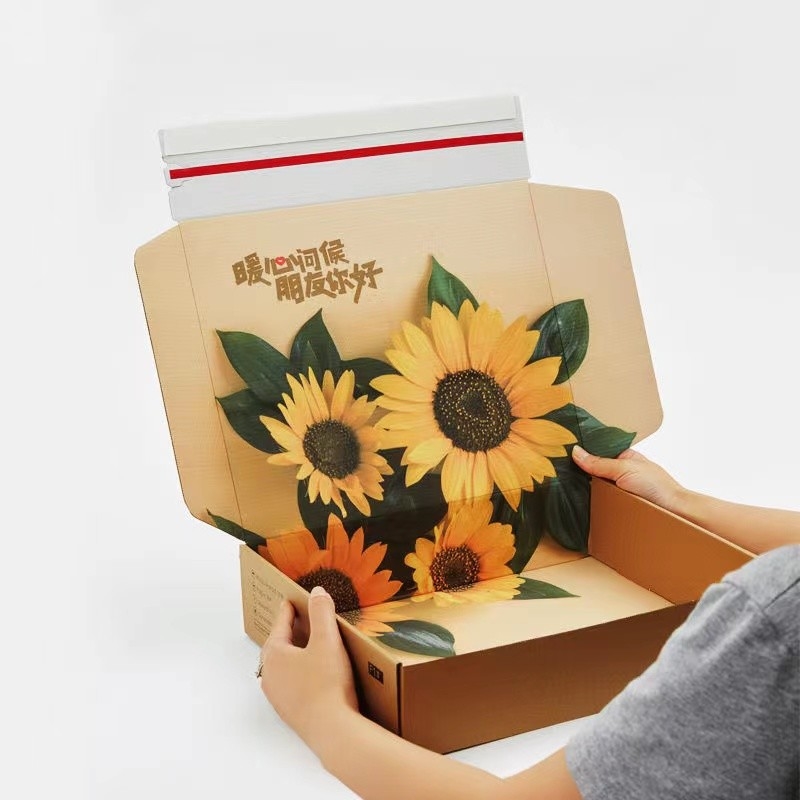

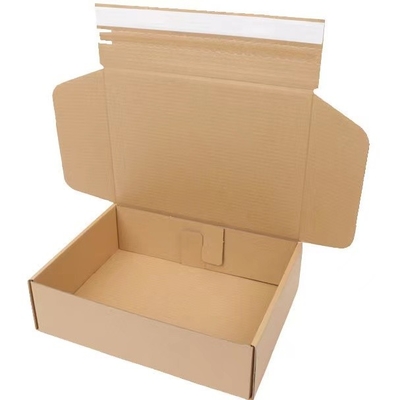

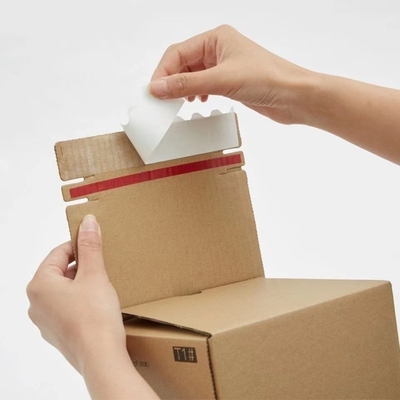

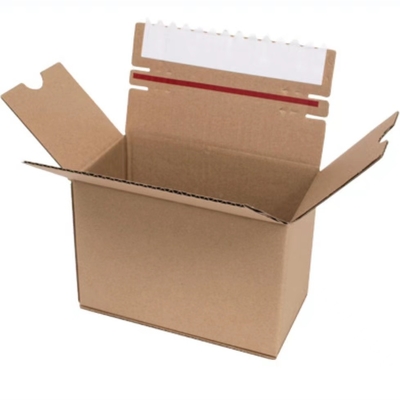

Zipper Shipping Boxes Machine / Carton Gluing Machine / Color Polar Grey Orange / 1600kg



Instruction:

Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.



Function and trait:



1. Small size ,Small footprint, easy to operate without experience, ideal for small batch production and variety of replacement.

2. Wide scope, normal cardboard boxes, abnormal single-sheet molding adhesive, It will make lock bottom boxes,lid and tray boxes after installation of automatic spray adhesive devices.

3. Save glue,it is equivalent to 1/3 of using manual gluing.

4. Save on labor,the Max. speed is 56 m / s, High efficiency is 3-4 times of manual operation.

5. Bonding firm and tidy, glue not overflow , patent-double headed sander can be used to remove the UV film, plastic film or coating layer, etc. To improve the adhesive force,and solve the problem of carton easy to onen nlastic in some seasons.



Product parameters:



Model HM1300 Working width 1310MM
material ≥300g/m²cartons Air compressor min. 6 bar
Minimum paper size 250mm×250mm total power 18 KW (380V AC 3φ 50Hz)
Maximum paper size 1300mm×1050mm weight 1600KG
The highest speed 60m/min-100m/min Machine dimensions 6600*2100*1600





List of vulnerable parts:



model picture quantity unit Notes
Tooth blade (15 teeth) Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life 0 4 slice
Press wheel + wrap adhesive Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life 1 4 piece
The flat cutter Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life 2 2 piece
The belt Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life 3 1 piece




Safety performance:



A: Electrical safety meets the national standard (CE certification).


B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.


C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2.


D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle.







Small Footprint Folding Carton Gluing Machine Easy Operate Long Service Life 4





Pre-sales service:


1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.


2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.


3.We will recommend and offer machine according to customer’s use and purchase budget.


In-sale service:


1.We will supply each manufacturing step photo for customer checking on time.


2.We will prepare packing and shipment according to customer’s needing in advance.


3.Testing the machine and making video for customer’s checking.


After-sale service:


1.We will guarantee the machine quality for 2 years.


2.We provide free training and answer customer's question on technology in time.
