Product Details:
|
| Warranty: | One Year | Weight: | 1600kg |
|---|---|---|---|
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, Corrugating Cardboard | The Highest Speed: | 60m/min-100m/min |
| Color: | Polar Grey , Orange | Material: | ≥300g/m²cartons |
| Type: | Gluing Machine | Key Selling Points: | High Productivity |
| Highlight: | CE Carton Inspection Machine,Carton Inspection Machine 50Hz,CE Corrugated Cardboard Box Machine |
||

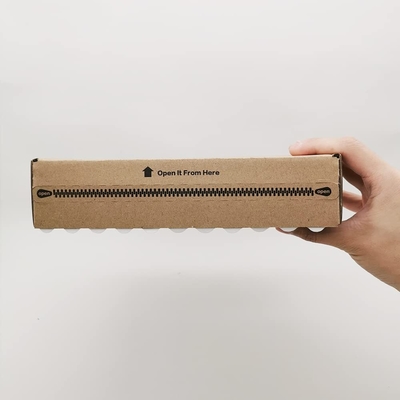

Zipper Shipping Boxes Zipper Shipping Boxes Machine / dimensions6600*2100*1600 / speed 60m/min
product description:

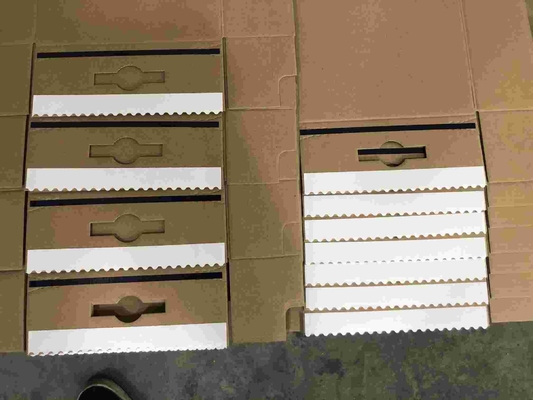

Full automatic stick double-sided adhesive machine is designed and researched by Deshisen CO., Ltd for single sheet water-based printing of corrugated container, Offset printing color-mounted corrugated cardboard boxes, cardboard color boxes, etc., affixed with double-sided tape and easy-to-tear tape simultaneously.
Any type of coding system can be set up on the platform for variable information printing, and a labeling head can be optionally installed. Local labeling function can be installed as well.
This series adopts a more optimized modular design, users can have more personalized choices, and achieve a multi-purpose design concept.
This equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
Feature
1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5.Grinders are provided in both sides of machine, to make gluing more stable and firm.
6.Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.
7.PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote diagnosis helps to maintenance (remote controller system included), and a photo electric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.
Folder gluer machine:
1. It is suitable for all carton packaging that needs to be glued and sealed, such as sealing of biscuits, food, medicine, tissue boxes, etc.
2. Filling by manual.Automatic delivery ,gluing and sealing. The size and specification can be adjusted.
3. The amount of glue used by the machine is about 1/3 of that of manual sealing box glue, and the amount of glue used is very small.
4. The whole machine is made of stainless steel and aluminum alloy, meeting food grade standards.
5. The bottom is equipped with casters for easy movement;Can increase the(pay)equipped with date core machine.
