Product Details:
|
| Warranty: | One Year | Weight: | 1600kg |
|---|---|---|---|
| Maximum Paper Size: | 1300mm×1050mm | Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD |
| The Highest Speed: | 60m/min-100m/min | Material: | ≥300g/m²cartons |
| Certification: | CE | Type: | Gluing Machine |
| After-sales Service Provided: | Video Technical Support,Online Support | Core Components: | PLC, Engine |
| Highlight: | Automatic Corrugated Cardboard Making Machine,Corrugated Cardboard Making Machine 700m/min |
||

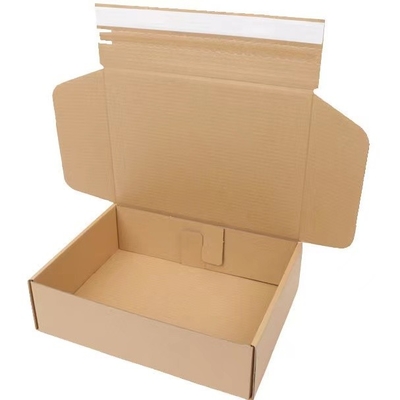

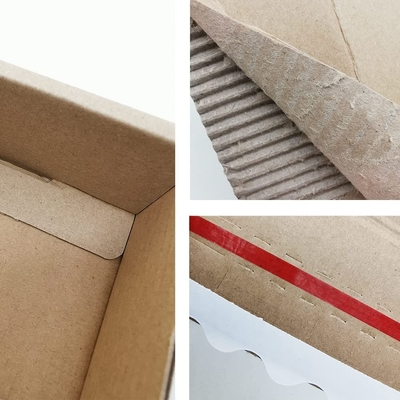

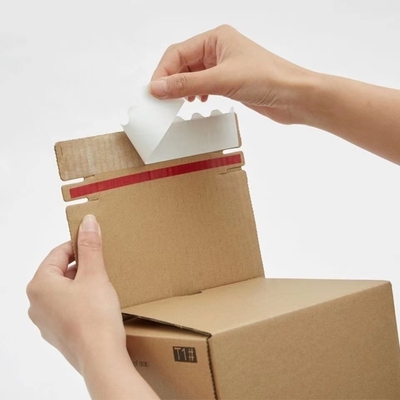

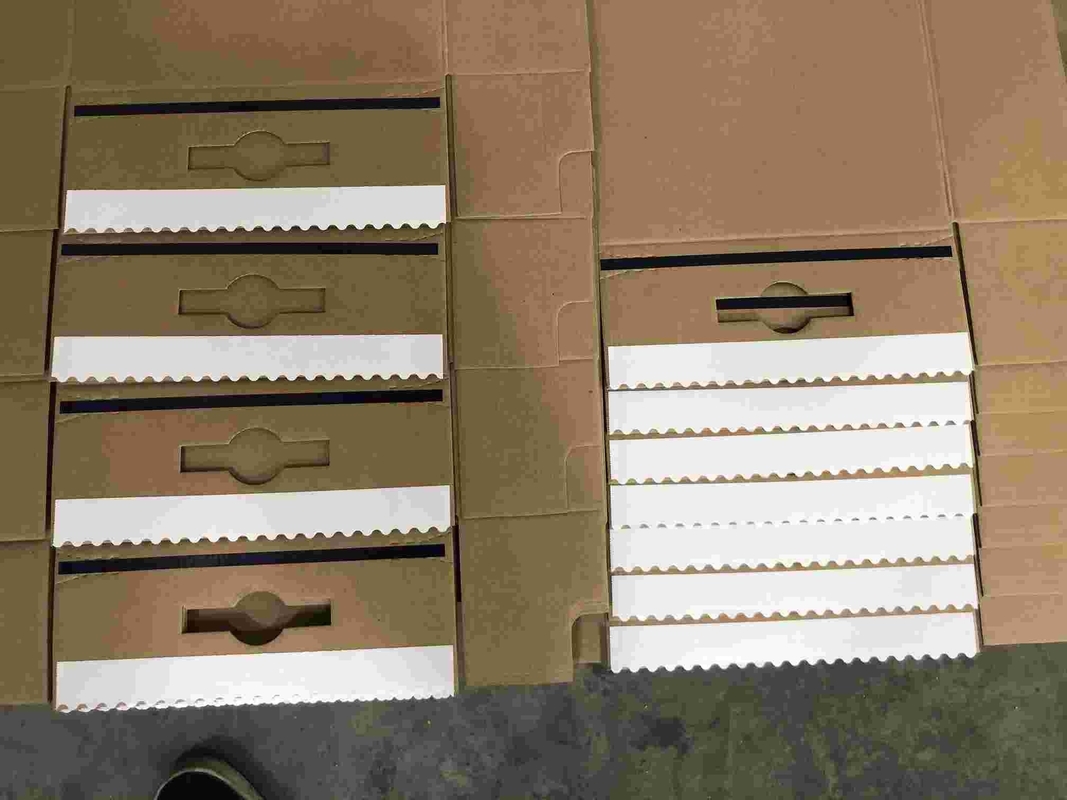

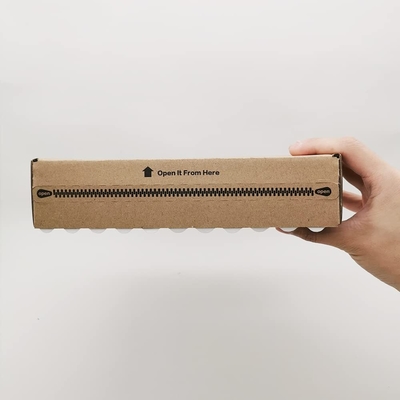

Zipper Shipping Boxes Machine / Color Polar grey orange / ≥300g/m²
| product description | |||
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive. |
|||
| Model | HM1300 | ||
| material | ≥300g/m²cartons | ||
| Minimum paper size | 250mm×250mm | ||
| Maximum paper size | 1300mm×1050mm | ||
| The highest speed | 60m/min-100m/min | ||
Advantages:
This machine can be added with a shell, which is not only beautiful, but also has a protective effect.As shown below .
Feature
1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.

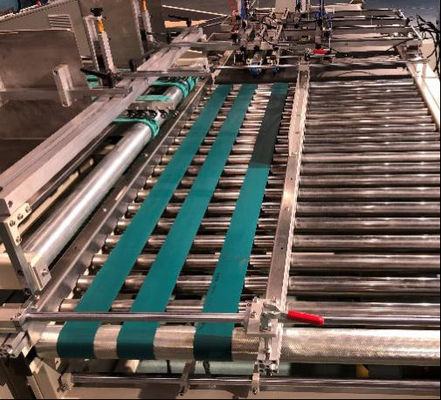

4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
After-sales service:
1. The initial installation training includes written process training and on-site training until you can operate the machine independently and safely. The general training is 3-5 days before you can proficiently operate the machine independently. After the training, you can contact our after-sales staff by telephone or video at any time.
2. The quality warranty period shall be within 12 months from the date of completion of installation and debugging. During the warranty period, Party B shall repair and replace relevant parts free of charge if there are any quality problems of the product. If the subject matter is damaged and parts need to be replaced due to party A's factory reasons or improper operation, Party B shall only charge the cost of the replacement parts during maintenance and provide lifelong service.
3. After receiving the warranty notice, if the problem cannot be solved by phone or wechat video, the maintenance personnel must arrive at the site for service within 24 hours.
4. If our staff comes to your company's urban area (new machines are installed within 2 months in the Yangtze River Delta area), we will visit your company's workshop irregularly to provide services, record every problem reported by users, continuously improve products, and create maximum value for users.
