Product Details:
|
| Printing Resolution: | 300 And 600dpi Horizontally And 200-900 Dpi Vertically | Nozzle Life: | 3 Years To 5 Years |
|---|---|---|---|
| Size Of The Drops: | Big, Medium And Small | Nozzle Width: | 54mm |
| Spray Printing: | 0.5mm—2mm Within | Ink Type: | Oily Ink, UV LED Ink |
| High Light: | Carton Box Inkjet Printer 180 m/min,Carton Box Inkjet Printer 400dpi |
||

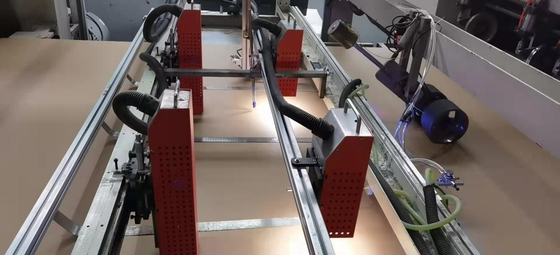

Carton Box Inkjet Printer / Ink type Oily ink, UV LED ink
1.Product catalog:
2.System technical parameters:
| Number | The main content | Parameter | Note |
| 1 | Printing resolution |
300 and 600dpi horizontally and 200-900 dpi vertically |
The longitudinal direction is feeding direction |
| 2 | Nozzle width | 54mm | Ricoh G6 (Japan) |
| 3 | Spray printing height | 0.5mm—2mm within | |
| 4 | Nozzle life | 3 years to 5 years | |
| 5 | Size of the drops | Big, medium and small | Level 3 choice |
| 6 | Maximum printing speed |
200dpi -- 350 m/min 300dpi -- 220 m/min 400dpi -- 180 m/min 600dpi -- 120m/min |
Jet printing speed is related to the vertical resolution, the size of the ink drop point, and related to the platform feeding stability and material surface tension, the specific jet printing effect and speed should be based on the actual test results |
| 7 | Spray print content |
Support more than 40 one-dimensional bar CODE types (code-128A BC,UPC-AE,CODE39, etc.) support more than 10 kinds of two-dimensional CODE types (QRCODE, PDF417, DATAMATRIX, AZTEC, etc.) support graphic text functions (circle, triangle, numbers, characters, Chinese characters, curves, etc.). |
|
| 8 | Printing database |
Support a variety of database formats (Access, Excel, TXT, SQL Server, Oracle, etc.), at the same time can be tuned into multiple databases, to achieve the same version of printing. |
|
| 9 | Nozzle lifting mode | pneumatic | |
| 10 | Nozzle moving from side to side | The knob is fixed and the guide rail is moved manually | |
| 11 | Ink type | Oily ink, UV LED ink | Uv curing, LED curing |
| 12 | Spray print medium |
Gold and silver cards, paper, self-adhesive, metal foil, UV white ink, OPP and other films. |
Material must reach a certain dyne value, the specific test results prevail. |
| 13 | sprinkler |
Independently designed sprinkler protection device, convenient and flexible, completely isolated from the outside world. |
|
| 14 | Ink way |
Centralized ink supply, separate negative pressure control nozzle. |
|
| 15 | Filtering level |
Imported PALL10μm filter, through two filters, protect the nozzle. |
|
| 16 | The secondary ink station |
Stable negative pressure, reduce ink leakage, make printing effect more stable. |
|
| 17 | The work environment |
15-30℃, humidity 50%-75%, dustproof space. |
|
| 18 | 1L ink printing code quantity |
Such as: 13*13mm two-dimensional code, 300*600DPI, about 1.1-1.2 million printing code. |
|
3. Daily maintenance:
As the core component of the variable data printing system, the nozzle needs special use environment and maintenance requirements. For details, please refer to the "Variable data Printing System Operation Manual". Sprinkler head is a kind of precision electronic products, its service life in addition to driving circuit and printing ink related, with the use of the environment and operation mode is closely related, in use need to be particularly careful, daily maintenance can fully extend its service life.
Warranty instructions for sprinkler head:
1. The warranty period of sprinkler head is 3 months, starting from the date of equipment acceptance.
2. If the sprinkler head fails during the warranty period, the time during the maintenance of the sprinkler head is not included in the warranty period. The warranty will be automatically extended.
3. In case of any malfunction of the sprinkler head during normal use, the testing department of Party B (the Seller) will test the sprinkler head free of charge.
4. Party B shall be responsible for maintenance of the nozzle as confirmed by party B's engineers. If it cannot print normally after maintenance, Party B shall be responsible for replacing it, provided that the sprinkler head must be tested by relevant departments of Party B or by the original manufacturer of the sprinkler head.
5. If it is confirmed that the nozzle has quality problems, Party B shall bear the corresponding freight. If a third party sprinkler manufacturer is needed overseas.
4. Application
Applicable Materials:
It can print on the surface of boards, carton, stone, pipe, cable, metal, galss, plastic, electronics, automatic parts,the fiber board, light steel keel, aluminum foil, etc.
Applicable industries:
The inkjet printer can apply to many industries with package progress, such as food industry, drink industry, drug industry, chemical industry, etc.
It can print Chinese/English, numbers, QR code, bar code, pictures, date and so on.
