Product Details:
|
| Warranty: | One Year | Weight: | 1600kg |
|---|---|---|---|
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD | The Highest Speed: | 60m/min-100m/min |
| Maximum Paper Size: | 1300mm×1050mm | Minimum Paper Size: | 250mm×250mm |
| Type: | Gluing Machine | Core Components: | PLC, Engine |
| High Light: | Small CBM Digital Box Printing Machine,Digital Box Printing Machine PLC System,Corrugated Box Printer Machine |
||

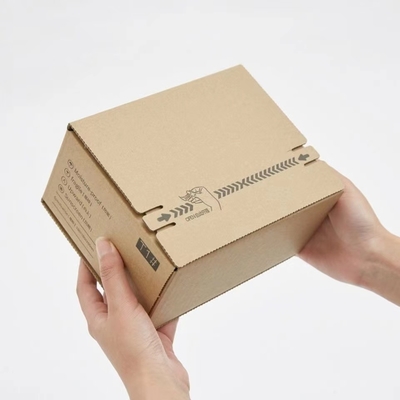

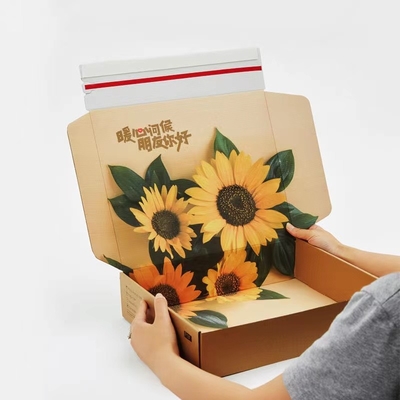

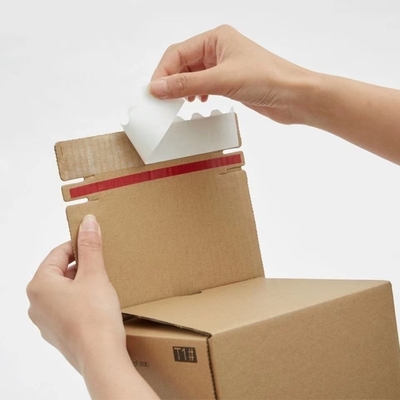

Zipper Shipping Boxes Machine /Minimum paper size 250mm×250mm / Maximum paper size 1300mm×1050mm
| product description | |||
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive. |
|||
| Model | HM1300 | ||
| material | ≥300g/m²cartons | ||
| Minimum paper size | 250mm×250mm | ||
| Maximum paper size | 1300mm×1050mm | ||
| The highest speed | 60m/min-100m/min | ||
Advantages:

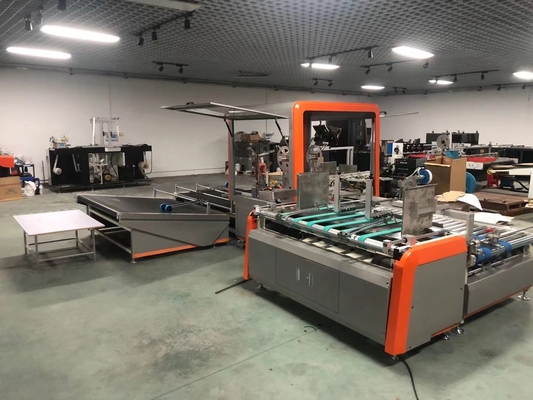

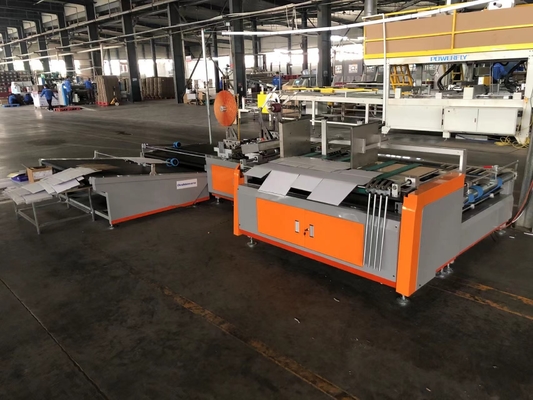

This machine can be added with a shell, which is not only beautiful, but also has a protective effect.As shown below .
Feature
1. The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2. The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3. An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
4. Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5. Grinders are provided in both sides of machine, to make gluing more stable and firm.
6.Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.
Product details:
1. Automatic paper feeding device:The new concept design mainly aims at the special tensioning method for fast change of belt running deviation, which effectively improves the change time.
2. Pull gauge rectifying deviation part:Single positioning unit, carton out of the paper with one side as the benchmark. To ensure accurate gluing/accuracy of products, click the drive alone, the machine is more stable.
3. Centrifugal paper scraping section:New design concept, through centrifugal paper scraping, cutting; And through the suction wheel transfer to the product. Effectively reduce the cost of double-sided glue, glue using hot melt glue can achieve the requirements of complete environmental protection.
4.Electric control system :The squeegee system adopts a bus controller and is equipped with a remote module, which effectively realizes the requirements of the Internet of things. Touch screen setting glue parameters, easy to understand, perfect control system effectively ensure the accuracy of the product glue.
After-sales service:
1. The initial installation training includes written process training and on-site training until you can operate the machine independently and safely. The general training is 3-5 days before you can proficiently operate the machine independently. After the training, you can contact our after-sales staff by telephone or video at any time.
2. The quality warranty period shall be within 12 months from the date of completion of installation and debugging. During the warranty period, Party B shall repair and replace relevant parts free of charge if there are any quality problems of the product. If the subject matter is damaged and parts need to be replaced due to party A's factory reasons or improper operation, Party B shall only charge the cost of the replacement parts during maintenance and provide lifelong service.
3. After receiving the warranty notice, if the problem cannot be solved by phone or wechat video, the maintenance personnel must arrive at the site for service within 24 hours.
4. If our staff comes to your company's urban area (new machines are installed within 2 months in the Yangtze River Delta area), we will visit your company's workshop irregularly to provide services, record every problem reported by users, continuously improve products, and create maximum value for users.
