Product Details:
|
| Name: | Zipper Shipping Boxes Machine | Power: | 18 KW (380V AC 3φ 50Hz) |
|---|---|---|---|
| Weight: | 1600kg | Machine Dimensions: | 6600*2100*1600 |
| The Highest Speed: | 60m/min | Material: | ≥300g/m²cartons |
| Warranty: | One Year | Color: | Polar Grey,Orange |
| Highlight: | Fully Automatic Carton Box Forming Machine,1310mm Carton Box Forming Machine,1310mm Carton Gluer Machine |
||

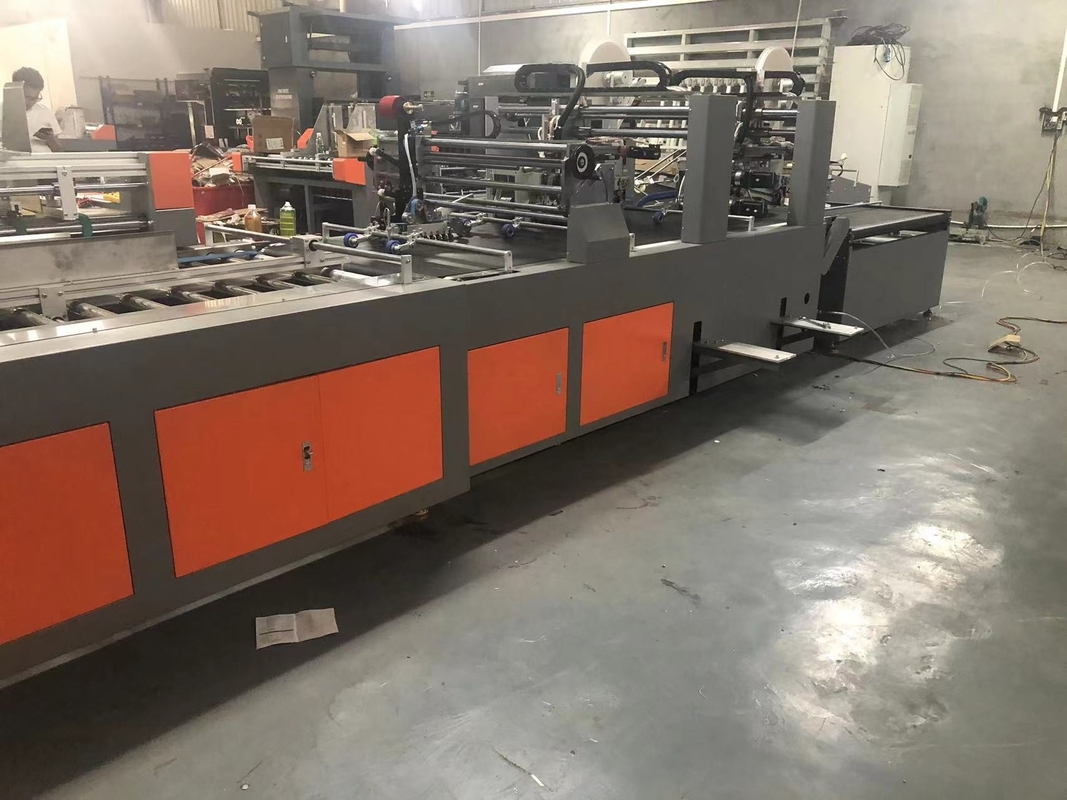

Zipper shipping boxes Zipper shipping boxes machine
product description:
The fully automatic double-sided tape sticking machine is used by Deshisen Co., Ltd. for single-sheet water-based printing, offset printing, color-mounted corrugated cartons, cardboard color boxes, etc.
Any type of inkjet coding system can be set on the platform for variable information printing, and a labeling head can be installed as an option. It is also possible to install the local label function.
This series adopts a more optimized modular design, users can have more personalized choices, and realize the design concept of one machine with multiple functions.
The equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.
The third-generation glue coating process for e-commerce special zipper cartons
Compared with the first-generation double-sided adhesive, the second-generation foam adhesive is two bonding materials, and the technical advantages of the third-generation are very obvious.
1. Ultra-long battery life of 10,000 meters, increasing production efficiency by 35%
2. The cost of hot melt adhesive material is 40% of double-sided adhesive
3. Environmental degradation (double-sided tape cannot be completely degraded)
Product parameters:
| Model | HM1300 | Working width | 1310mm |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
Feature:
1. The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2. The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3. An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
4. Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5. Grinders are provided in both sides of machine, to make gluing more stable and firm.
