Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Weight: | 1600kg | Maximum Paper Size: | 1300mm×1050mm |
| The Highest Speed: | 60m/min | Machine Dimensions: | 6600*2100*1600 |
| Highlight: | 380V Folding Carton Gluing Machine,1600mm Folding Carton Gluing Machine,60m/Min Gluing Machine For Boxes |
||
Zipper Shipping Boxes Amazon Boxes / Air compressor min. 6 bar
product description:

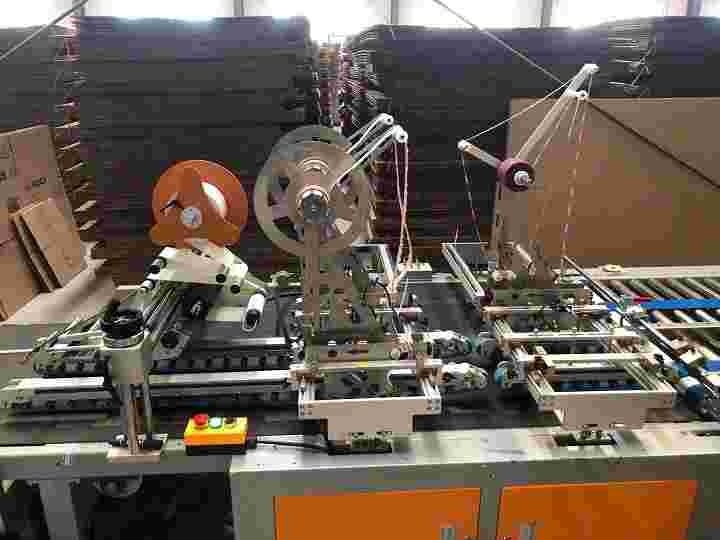

The fully automatic double-sided tape sticking machine is used by Deshisen Co., Ltd. for single-sheet water-based printing, offset printing, color-mounted corrugated cartons, cardboard color boxes, etc.
Any type of inkjet coding system can be set on the platform for variable information printing, and a labeling head can be installed as an option. It is also possible to install the local label function.
This series adopts a more optimized modular design, users can have more personalized choices, and realize the design concept of one machine with multiple functions.
The equipment is widely used in pharmaceutical packaging, food packaging, logistics packaging, gift box packaging and other fields.
The third-generation glue coating process for e-commerce special zipper cartons
Compared with the first-generation double-sided adhesive, the second-generation foam adhesive is two bonding materials, and the technical advantages of the third-generation are very obvious.
1. Ultra-long battery life of 10,000 meters, increasing production efficiency by 35%
2. The cost of hot melt adhesive material is 40% of double-sided adhesive
3. Environmental degradation (double-sided tape cannot be completely degraded)
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min | Machine dimensions | 6600*2100*1600 |
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
1. Automatic paper feeding device:The new concept design mainly aims at the special tensioning method for fast change of belt running deviation, which effectively improves the change time.
2. Pull gauge rectifying deviation part:Single positioning unit, carton out of the paper with one side as the benchmark. To ensure accurate gluing/accuracy of products, click the drive alone, the machine is more stable.
3. Centrifugal paper scraping section:New design concept, through centrifugal paper scraping, cutting; And through the suction wheel transfer to the product. Effectively reduce the cost of double-sided glue, glue using hot melt glue can achieve the requirements of complete environmental protection.
4.Electric control system :The squeegee system adopts a bus controller and is equipped with a remote module, which effectively realizes the requirements of the Internet of things. Touch screen setting glue parameters, easy to understand, perfect control system effectively ensure the accuracy of the product glue.
Safety performance:
A: Electrical safety meets the national standard (CE certification);
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle;
