Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Weight: | 1600kg | Maximum Paper Size: | 1300mm×1050mm |
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD | The Highest Speed: | 60m/min |
| Color: | Polar Grey , Orange | Material: | ≥300g/m²cartons |
| Condition: | New | Packaging Type: | Cartons |
| Spare Parts: | Free |

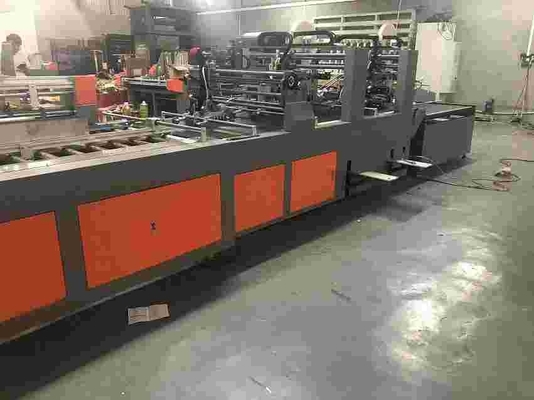

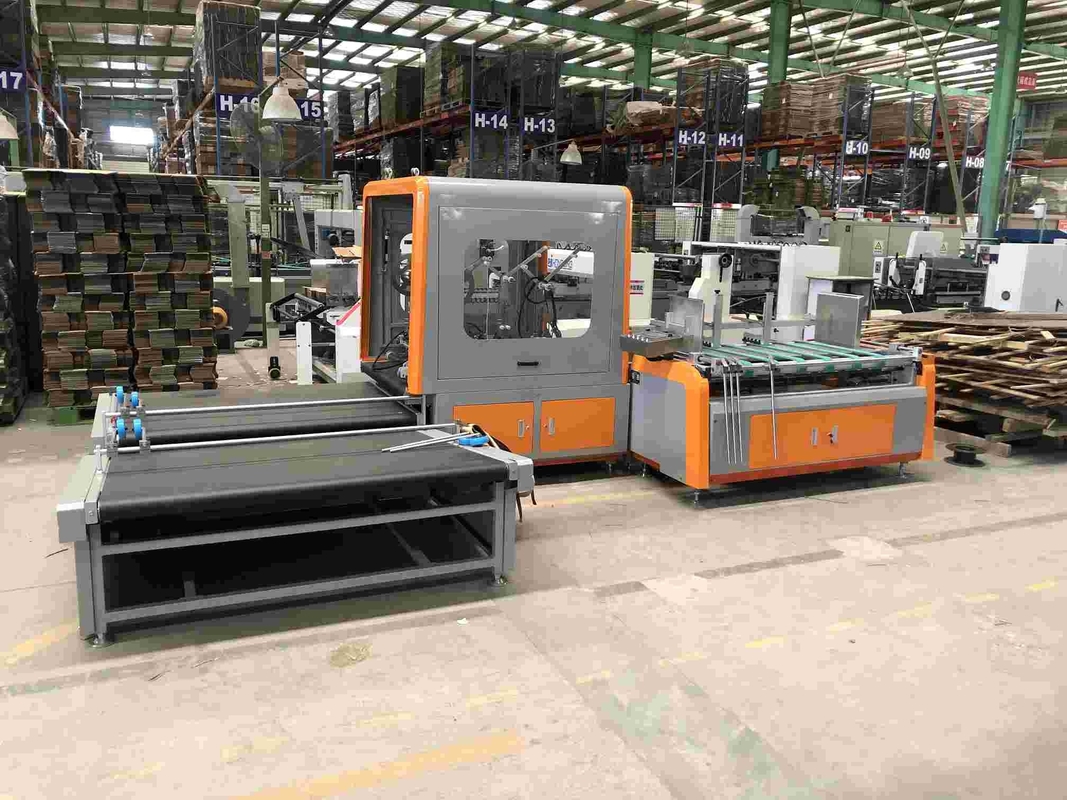

Zipper Shipping Boxes Zipper Shipping Boxes Machine / Air compressor min. 6 bar
Instruction:
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.
Feature:
1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.

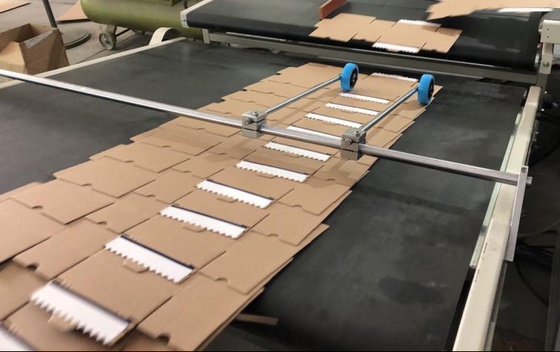

4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5.Grinders are provided in both sides of machine, to make gluing more stable and firm.
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
Safety performance:
A: Electrical safety meets the national standard (CE certification).
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2.
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle.
