Product Details:
|
| Weight: | 1600kg | Maximum Paper Size: | 1300mm×1050mm |
|---|---|---|---|
| Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD | The Highest Speed: | 60m/min-100m/min |
| Color: | Polar Grey , Orange | Material: | ≥300g/m²cartons |
| Automatic Grade: | Automatic | Key Selling Points: | High Productivity |
| Highlight: | 70m/Min Automatic Cartoning Machine,Automatic Cartoning Machine 300g/M2,Automatic Cartoning Machine Small CBM |
||

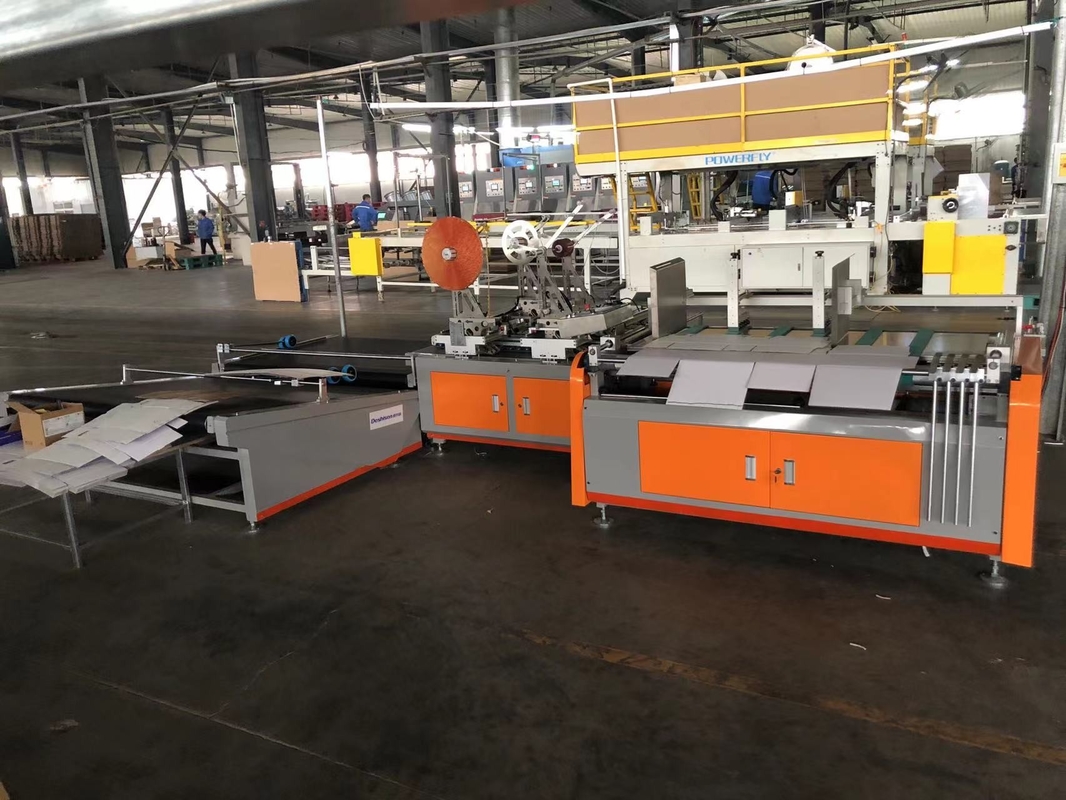

Zipper Shipping Boxes Machine / Maximum paper size 1300mm×1050mm
| product description | |||
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive. |
|||
| Model | HM1300 | ||
| material | ≥300g/m²cartons | ||
| Minimum paper size | 250mm×250mm | ||
| Maximum paper size | 1300mm×1050mm | ||
| The highest speed | 60m/min-100m/min | ||
Advantages:

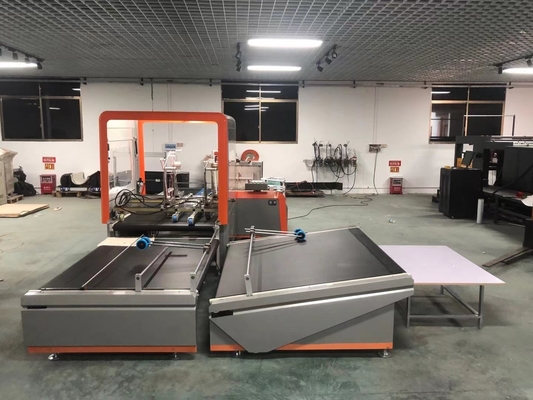

This machine can be added with a shell, which is not only beautiful, but also has a protective effect.As shown below .

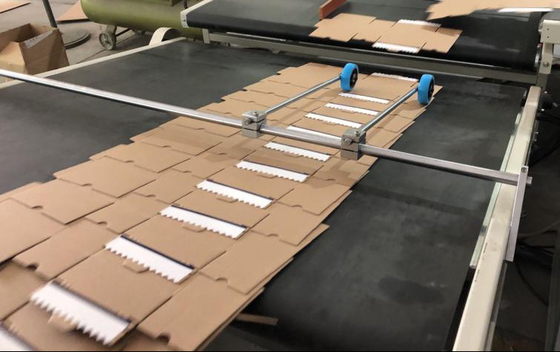

E-commerce special zipper carton third generation glue process
Compared with the first generation of double-sided glue, the second generation of foam glue two adhesive materials, the third generation of technology advantages are very obvious.
1,10000 meters long endurance, production efficiency increased by 35%.
2, hot melt adhesive material cost is 40% of double-sided adhesive.
3, environmental protection degradation (double-sided adhesive can not be completely degraded).
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Feature:
1.The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.
3.An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
4.Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.
5.Grinders are provided in both sides of machine, to make gluing more stable and firm.
6.Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.
7.PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote diagnosis helps to maintenance (remote controller system included), and a photo electric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.
