Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Weight: | 1600kg | The Highest Speed: | 60m/min-100m/min |
| Minimum Paper Size: | 250mm×250mm | Material: | ≥300g/m²cartons |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, | Application: | Food, Beverage, Commodity, Medical, Machinery & Hardwar |
| High Light: | 380V Carton Printer Machine,Carton Printer Machine 90m/min,100m/min Printed Box Making Machine |
||

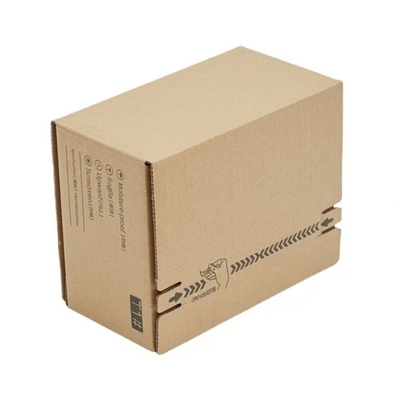

Zipper Shipping Boxes Machine / Minimum paper size 250mm×250mm
Instruction:
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.
Specification:
Model HM1300 is the hot sale of the company. The users praise its stability, versatility and flexibility.It can paste many kinds of boxes. For small ones,it can make 40,000 to 50,000 pcs per hour. It' sideal equipment in printing industry.

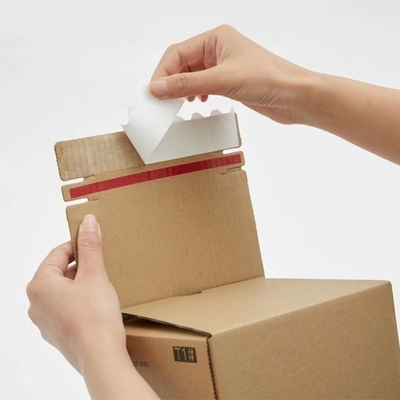

E-commerce special zipper carton third generation glue process
Compared with the first generation of double-sided glue, the second generation of foam glue two adhesive materials, the third generation of technology advantages are very obvious.
1, 10000 meters long endurance, production efficiency increased by 35%.
2, hot melt adhesive material cost is 40% of double-sided adhesive.
3, environmental protection degradation (double-sided adhesive can not be completely degraded).
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Safety performance:
A: Electrical safety meets the national standard (CE certification).
B: The exposed transmission parts are covered and marked; There is an emergency stop button on the remote control, front end of feeding, rear end of receiving and middle console.
C: In line with the national requirements for energy conservation and emission reduction, the motor energy efficiency is level 2.
D: Maintenance is convenient and quick. Butter is added to the glue machine head and main drive shaft with a butter nozzle.
