Product Details:
|
| Power: | 18 KW (380V AC 3φ 50Hz) | Warranty: | One Year |
|---|---|---|---|
| Weight: | 1600kg | Usage: | Packaging, Corrugated Box, Making Carton, Chemical, CORRUGATING CARDBOARD |
| The Highest Speed: | 60m/min | Color: | Polar Grey , Orange |
| Minimum Paper Size: | 250mm×250mm | Material: | ≥300g/m²cartons |
| Glue Type: | Hot Melt | Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, Printing |
| Highlight: | 300g/M2 Carton Box Printing Machine,Carton Box Printing Machine 1600kg,Cardboard Box Printing Machine 60m/min |
||

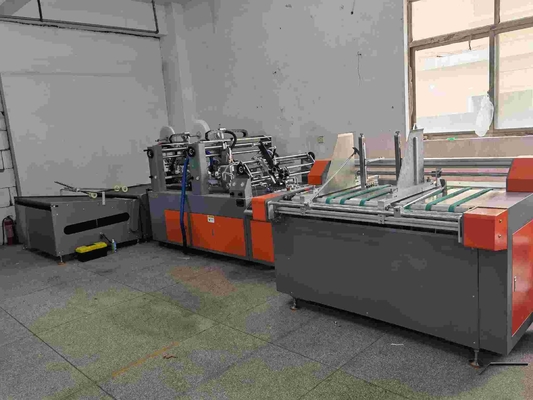

Zipper Shipping Boxes Machine / Digital Printing Machine /≥300g/M²Cartons / 60m/Min
Instruction:
Semi-automatic press model folder&gluer speicail to meet middle and small orders, small CBM, easy operation, widely use range, it is suit for normal box, special shape color box. Add automatic gluing device also can produce hook bottom box and earth cover carton, save glue, labour, maxmium run speed 60m/min, the effective is 3-4times than normal mahcine; gluing firmly, trimly and don't over glue,with double head sander remove UV or film. Improve adhensive.
Advantages:

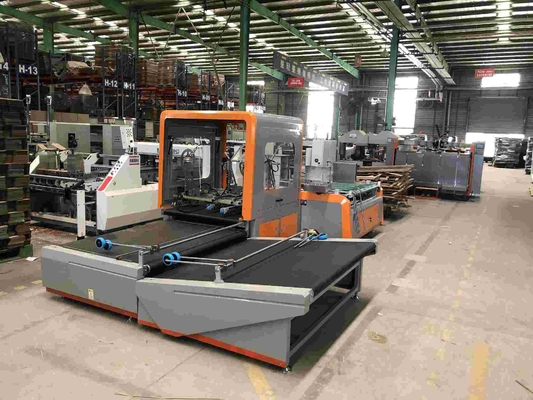

This machine can be added with a shell, which is not only beautiful, but also has a protective effect.As shown below .

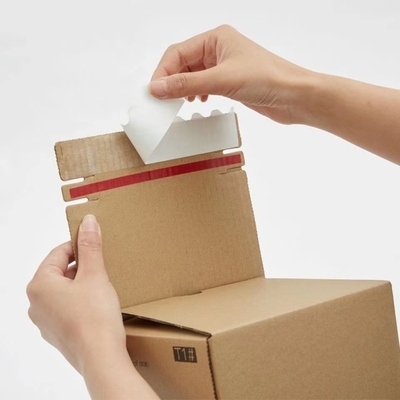

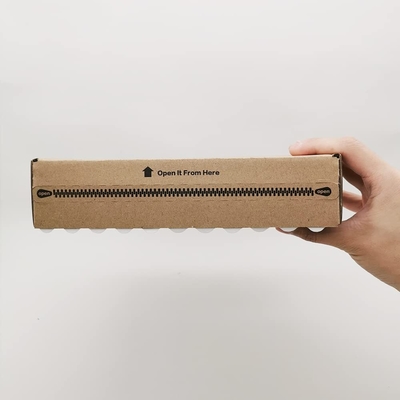

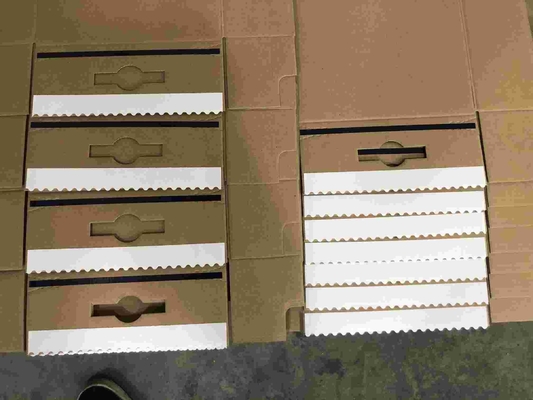

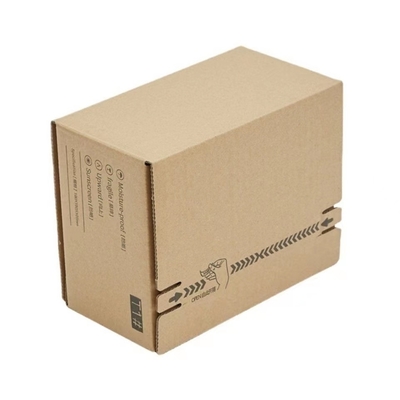

E-commerce special zipper carton third generation glue process
Compared with the first generation of double-sided glue, the second generation of foam glue two adhesive materials, the third generation of technology advantages are very obvious.
1, 10000 meters long endurance, production efficiency increased by 35%.
2, hot melt adhesive material cost is 40% of double-sided adhesive.
3, environmental protection degradation (double-sided adhesive can not be completely degraded).
Product parameters:
| Model | HM1300 | Working width | 1310MM |
| material | ≥300g/m²cartons | Air compressor | min. 6 bar |
| Minimum paper size | 250mm×250mm | total power | 18 KW (380V AC 3φ 50Hz) |
| Maximum paper size | 1300mm×1050mm | weight | 1600KG |
| The highest speed | 60m/min-100m/min | Machine dimensions | 6600*2100*1600 |
List of vulnerable parts:
| model | picture | quantity | unit | Notes |
| Tooth blade (15 teeth) |  |
4 | slice | |
| Press wheel + wrap adhesive | |
4 | piece | |
| The flat cutter | |
2 | piece | |
| The belt | |
1 | piece |
Folder gluer machine:
1. It is suitable for all carton packaging that needs to be glued and sealed, such as sealing of biscuits, food, medicine, tissue boxes, etc.;
2. Filling by manual.Automatic delivery ,gluing and sealing. The size and specification can be adjusted;
3. The amount of glue used by the machine is about 1/3 of that of manual sealing box glue, and the amount of glue used is very small;
4. The whole machine is made of stainless steel and aluminum alloy, meeting food grade standards;
5. The bottom is equipped with casters for easy movement;Can increase the(pay)equipped with date core machine.
